WC mounting set TopFix ® with two lengths - stainless steel - spare part for HARO Medical ECG-seat

  • Quick and easy installation
  • Universally suitable for most ceramics
  • High-quality materials and modern design

For quick and safe installation of your ECG seat:

The TopFix hinge is a toilet seat holder made of stainless steel on a toggle dowel basis. The hinge consists of a threaded screw, a hinge plate, a toggle dowel and a seal and is quickly and completely pre-assembled and included in the scope of delivery. The hinge cover and the seal are not pre-assembled. A second, longer threaded screw with a toggle dowel and nut is also included. The short threaded screw (already pre-assembled) is ideal for toilet ceramics that are open at the sides and closed with a ceramic thickness of up to 25 mm and a hole diameter of at least 14 mm. For ceramics with a ceramic thickness of 25 to 45 mm (more than 45 mm is not supported), please swap the short threaded screw with the long threaded screw provided .

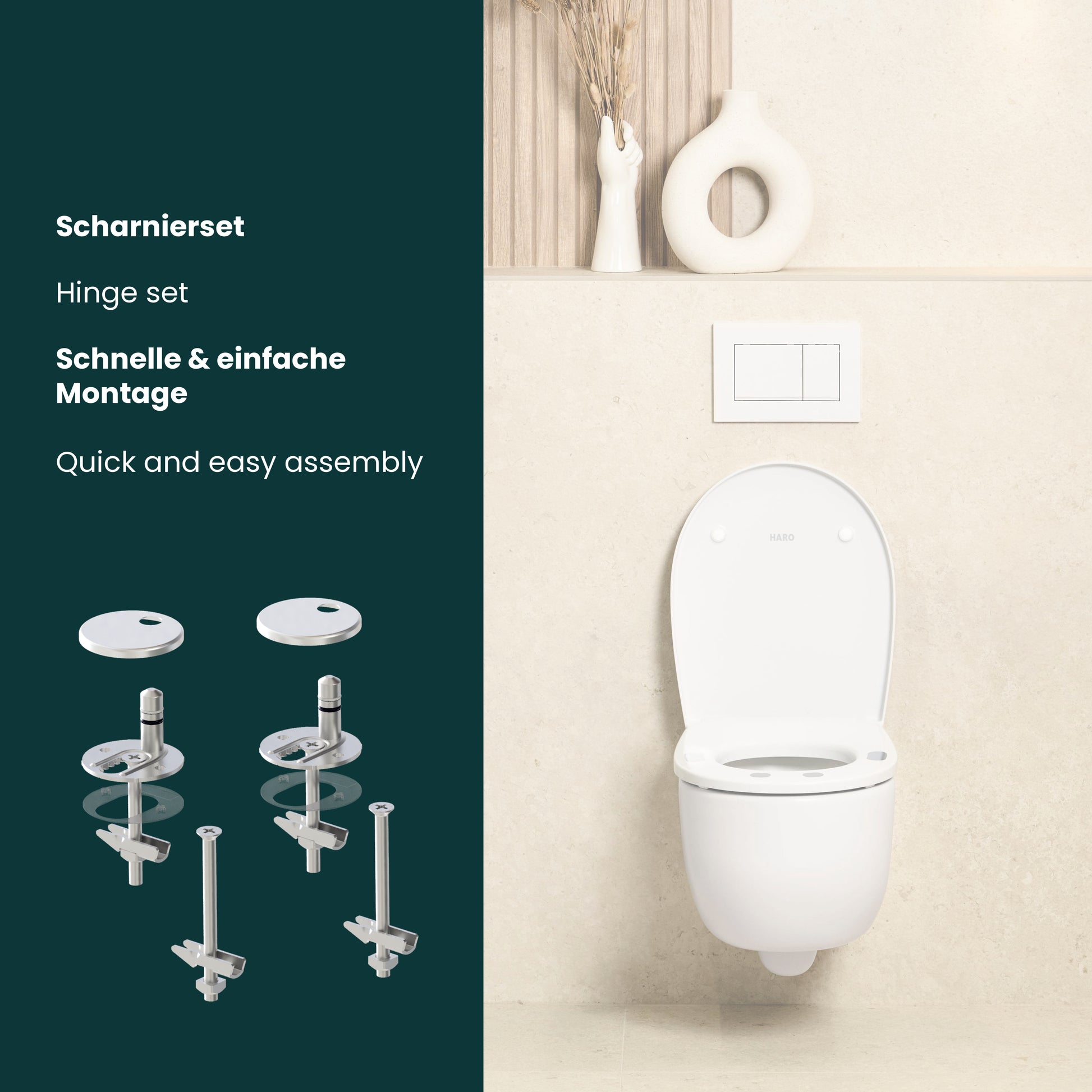

scope of delivery

Contents:
1) Hinge set 2x (pre-assembled without seal) with:
 Hinge cover
 Hinge plate with pin
 Seal
 Toggle dowels
 Threaded screw 60 mm
 Screw nut
2) Long screw set 2x (pre-assembled) with:
 Toggle dowels
 Screw nut
 Threaded screw 80 mm

product details

- The TopFix hinge is a toilet seat holder made of stainless steel on a hinged dowel base. The hinge consists of a threaded screw, a hinge plate, a hinged dowel and a seal and is supplied almost completely pre-assembled.
- The hinge cover and the seal are not pre-assembled. A second, longer threaded screw with a toggle plug and nut is also included.
- The short threaded screw (already pre-assembled) is suitable for side-open and closed WC ceramics with a ceramic thickness of up to 25 mm and a hole diameter of at least 14 mm.
- For ceramic with a ceramic thickness of 25 to 45 mm (more than 45 mm is not supported), please replace the short threaded screw with the enclosed long threaded screw.

cleaning instructions

Please follow the cleaning instructions provided with your ECG-seat.

product data

Pre-assembled set including seal and cover
2 screw lengths: 60 mm and 80 mm
Dimensions: 45 mm x 45 mm x 90 mm or 110 mm
Weight set: approx. 200 g

Required hole spacing of WC ceramic for mounting ECG-seat: 105 - 220 mm

Further information

The hinge set is intended as a replacement product for your ECG-seat and is already included in the delivery of your ECG-seat.
